WD01
winger
WD01
1000w
65kgs
36V13AH lithium
High-tensile steel
15-18KM
45km/h (28mph)
6-8hrs
36v/48v
front 2.75-12" / rear 3.00-10"
no
front and rear mechanical disc ( Ø180mm) brake
front 10T / rear 76T
65/68kg
1330*640*865 mm

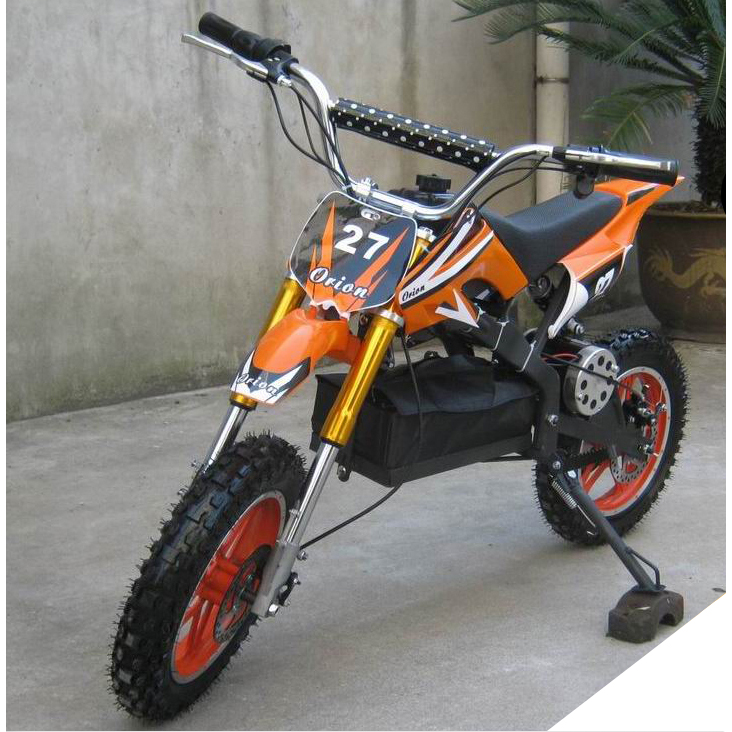

Introducing our latest innovation in electric off-road adventure: the WINGER Electric Dirt Bike. Engineered to redefine thrill and performance, this dirt bike combines cutting-edge technology with eco-conscious design, delivering an electrifying ride like never before.
At the heart of this trailblazer lies a potent 1000W 36V neodymium magnet DC motor, setting the stage for unrivaled power and agility. But wait, there's more! For those seeking even greater adrenaline surges, we offer optional upgrades to the E-motor, including a formidable 1100W variant for those who crave that extra kick, or a more efficient 900W option for those looking to extend their adventures.
Powering this beast are three 12V 9AH lead-acid batteries, ensuring ample juice to conquer any terrain with confidence. However, for those who demand the pinnacle of performance and longevity, we offer optional lithium-ion battery upgrades, providing choices between the long-lasting 36V 13Ah variant or the lightweight yet potent 36V 10Ah option.
Now, let's talk numbers. With the 36V 1000W configuration, riders can unleash a maximum output power of 1.80 kW at 1600 rpm, backed by an impressive maximum torque of 10.40 Nm. For those who opt for the 1100W upgrade, prepare to experience a surge of power with 1.90 kW output and 11.90 Nm of torque. Meanwhile, the 900W configuration offers a balanced blend of efficiency and performance, delivering 1.25 kW of power and 8.20 Nm of torque at 1420 rpm.
Whether you're tearing through rugged trails or navigating challenging terrains, the WINGER Electric Dirt Bike is engineered to elevate your off-road experience to new heights. It's time to embrace the future of adventure, one electrifying ride at a time.
| Standard specificaton: | |
| E-motor: 1000W36V neodymium magnet DC motor | |
| OPTIONAL E-motor A: 1100W36V | |
| OPTIONAL E-motor B: 900W36V | |
| Battery: 3X12V9AH lead acid | |
| OPTIONAL BATTERY A: 36V13Ah lithium | |
| OPTIONAL BATTERY B: 36V10Ah lithium | |
| Max. output power(kw/r/mim) for 36V1000W: 1.80 / 1600 | |
| Max. output power(kw/r/mim) for 36V1100W: 1.90 / 1500 | |
| Max. output power(kw/r/mim) for 36V900W: 1.25 / 1420 | |
| Max. torque(N.m) for 36V1000W: 10.40 | |
| Max. torque(N.m) for 36V1100W: 11.90 | |
| Max. torque(N.m) for 36V900W: 8.20 | |
| Transmission: intelligentized controller,3 function adjustable (see info. below) | |
| throttle response speed adjustable from 0.2S to 1.0S | |
| motor power output adjustable from 10A to 35A | |
| max speed adjutable from 8kmph - 28kmph | |
| Final Drive: front 10T / rear 76T | |
| Range per full charge( 9AH): ~9KM | |
| Range per full charge( 13AH): ~16KM | |
| Wheel & tires: high strength steel spoke rim, front 12" and rear 10" | |
| Tire: front 2.75-12" / rear 3.00-10" | |
| Max. speed: 28kmph | |
| Max load capacity: 65kgs | |
| Brake system: front and rear mechanical disc ( Ø180mm) brake | |
| Suspension: hydraulic inverted fork and rear mono shock | |
| Dimension ( L* W * H): 1330*640*865 mm | |
| Wheelbase: 920mm | |
| Seat height: 620mm | |
| Min ground clerance: 250mm | |
| Dry weight: 42kgs- lead acid battery / 36kgs- lithium battery | |
| Package carton size: 1170*360*640mm | |
| Qty/container: 106pcs/ 20ft container | |
| 252pcs/40HQ container | |
