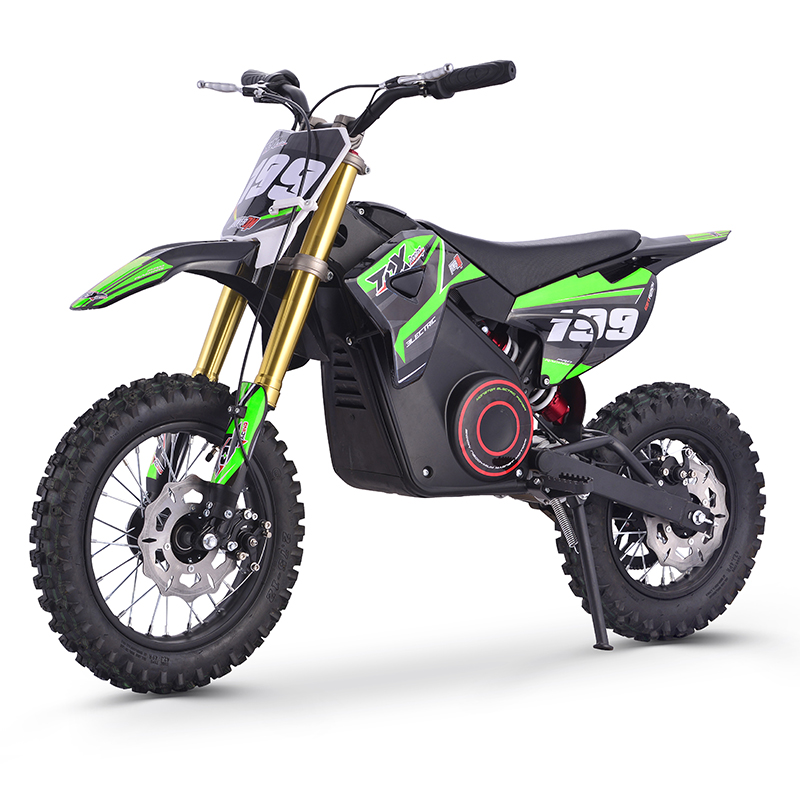

48v 1400W Brushless Motor Electric Dirt Bike ETM

Introducing the latest in electric dirt bike technology: our high-performance E-motor series, designed for both novice and experienced riders.

Key Features:

Motors:

· Standard E-motor: 1400W 48V neodymium magnet DC brushless motor.

· Optional E-motor: 1500+W 48V brushless motor for enhanced power and performance.

Batteries:

· Standard Battery: 48V 13AH lithium battery.

· Optional Battery: 48V 15.6AH lithium battery for extended range.

Performance and Specifications:

· Transmission: Intelligentized controller with 3 adjustable functions:

o Throttle response speed adjustable from 0.2 seconds to 1.0 second.

o Motor power output adjustable from 15A to 32A.

o Maximum speed adjustable from 10 km/h to 42 km/h.

· Final Drive: Front sprocket with 10 teeth and rear sprocket with 76 teeth.

Range:

· 10AH lithium battery: Approximately 18 km per full charge.

· 13AH lithium battery: Approximately 24 km per full charge.

· 15.6AH lithium battery: Approximately 28 km per full charge.

Wheels and Tires:

· Wheels: High strength steel spoke rims.

o Front: 14 inches.

o Rear: 12 inches.

· Tires:

o Front: 2.75-14".

o Rear: 3.00-12".

Speed and Load:

· Maximum Speed: 42 km/h.

· Maximum Load Capacity: 65 kg.

Braking and Suspension:

· Brake System: Front and rear mechanical disc brakes with 180mm diameter.

· Suspension: Hydraulic inverted fork in the front and rear mono shock for smooth rides over rough terrains.

Dimensions and Weight:

· Overall Dimensions (LWH): 1470 mm * 640 mm * 920 mm.

· Wheelbase: 1000 mm.

· Seat Height: 680 mm.

· Minimum Ground Clearance: 300 mm.

· Dry Weight: 38 kg.

This electric dirt bike combines advanced engineering with rugged durability, making it perfect for off-road adventures. Whether you're hitting the trails or cruising through rough terrains, this bike offers exceptional performance and reliability.
