Model No: DW-02
Turning Radius: 115CM
Battery: 12V12AH *2
Motor Power: 200W
Controller: Curtis 24V45A
Charger: 24V2A
Charge time: 8-10 hours
Max. Speed: 8km/h
Travel Range: 15-18km
Max. load: 120kg
Ground Clearance: 13CM
Climb degree: 12°
Wheel: Front 7'' Rear 7''
Wheel Hub: NDWon Solid Tire
Rear shock: 125x4.5 *2
Drive System: 24V Sealed Mini Transaxle 24v
Free Wheeling: Manual
| Quantity: | |
|---|---|
DW-02
winger
DW-02
DW-02
200W
120KG
12V12AH *2
15-18KM
8KM/H
8-10hrs
24v
7 inch
plastic
yes
motor
no
46kg/56kg
110x52x94CM
119x56x53CM
Mobility Electric Scooter Parameter:
| Battery | Lead acid battery, 24V×12AH (2pcs) |
| Motor | 24V/270W |
| Controller | 24V/45ACurtis |
| N.W（W/battery） | 55kg |
| G.W（W/battery） | 68kg |
| Max Loading | 150kg |
| Speed（km/h） | 6-8km/h |
| Min.Turning Radius | 1.1m |
| Max Climbing Slope | 12° |
| Ground Clearance | 110mm |
| Max Range | ≥ 18km |
| Tire & Material | 9''/9'' Solid Tire |
| Wheelbase | 800mm |
| Suspension | Rear suspension *1 |
| Seat | 360° Leather seat |
| Child Seat | optional |
| Headlight | LED |
| Indicator | optional |
| Rear mirror | optional |
| Key | 2pcs |
| Basket | Removable |
| Charge time | 8-10h |
| Charger | 24V2A |
| USB | optional |

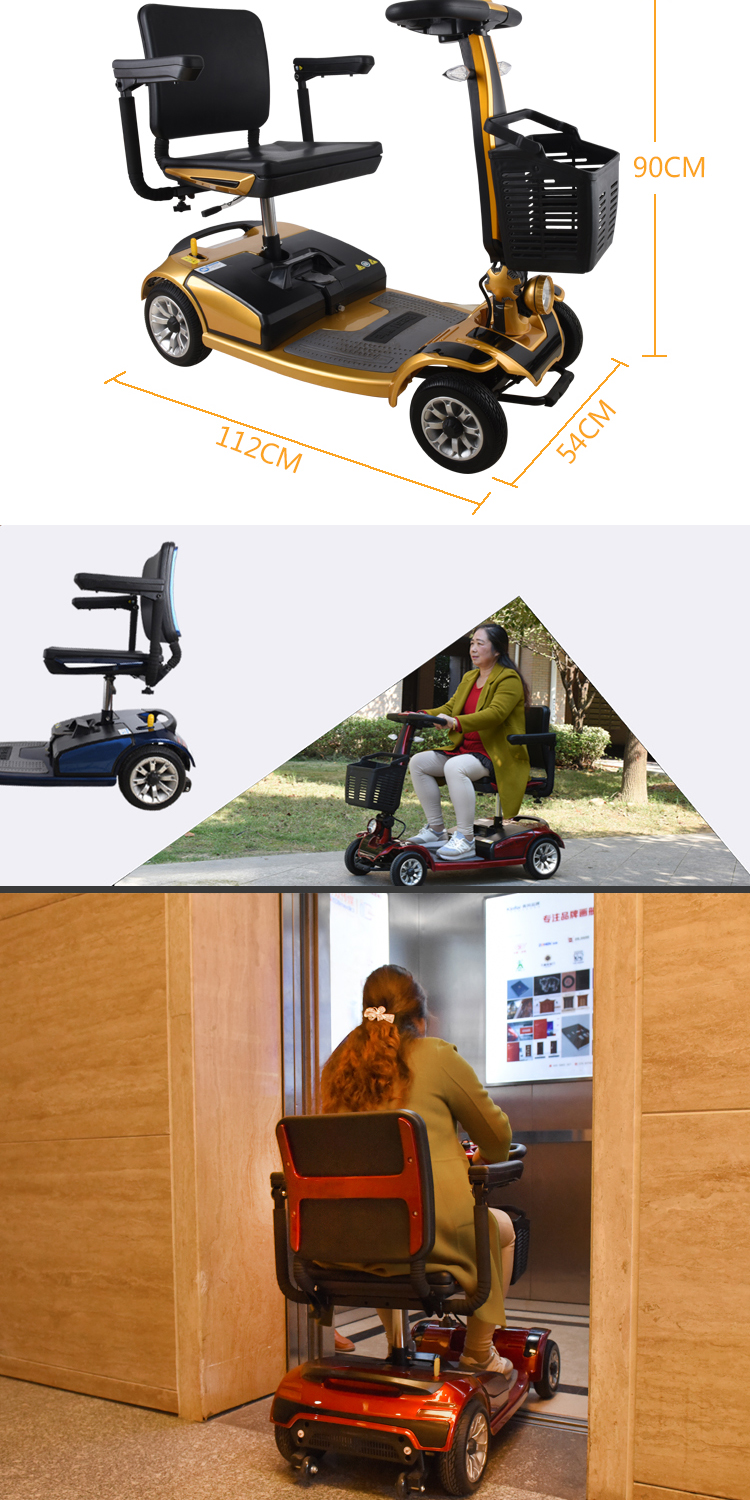

| Full Size（L×W×H） | 1100×510×900mm |
| Package Size | 1130×530×560mm |
| Main body | Intergrated |
| colour | red.blue.silver.black.white.grey |
| Folding | Folding |
Introducing our latest electric mobility scooter, designed to enhance your mobility and independence with unparalleled convenience and comfort.
Key Specifications:
Turning Radius: 115CM - Maneuver through tight spaces with ease, ensuring smooth navigation in various environments.
Battery: 12V12AH *2 - Equipped with powerful batteries, providing reliable and long-lasting performance for extended journeys.
Motor Power: 200W - Experience seamless acceleration and efficient operation, suitable for both indoor and outdoor use.
Controller: Curtis 24V45A - Incorporating advanced control technology for optimal responsiveness and safety.
Charger: 24V2A - Effortlessly recharge your scooter with the included charger, ensuring minimal downtime between rides.
Charge Time: 8-10 hours - Get back on the move quickly with a relatively short charging period, allowing for frequent use.
Max. Speed: 8km/h - Strike a balance between speed and safety, ideal for leisurely strolls and daily commuting.
Travel Range: 15-18km - Enjoy extended travel distances on a single charge, providing the freedom to explore your surroundings.
Max. Load: 120kg - Accommodating a wide range of users, ensuring stability and reliability for all individuals.
Ground Clearance: 13CM - Navigate over obstacles effortlessly, ensuring a smooth and comfortable ride on varied terrain.
Climb Degree: 12° - Conquer inclines with confidence, enabling you to tackle slopes with ease.
Wheel: Front 7'' Rear 7'' - Designed for optimal traction and stability, providing a smooth and controlled ride.
Wheel Hub: NDWon Solid Tire - Offering durability and reliability, ensuring minimal maintenance and maximum performance.
Rear Shock: 125x4.5 *2 - Absorb bumps and vibrations for a comfortable and stable ride, enhancing overall comfort and safety.
Drive System: 24V Sealed Mini Transaxle 24v - Engineered for efficiency and reliability, delivering smooth and consistent power delivery.
Our electric mobility scooter is crafted with precision engineering and premium components to offer you the ultimate mobility solution. Whether you're running errands, exploring the outdoors, or simply enjoying a leisurely ride, our scooter provides unmatched performance, comfort, and reliability to suit your lifestyle needs. Experience the freedom of mobility like never before with our electric scooter.
Mobility Electric Scooter Parameter:
| Battery | Lead acid battery, 24V×12AH (2pcs) |
| Motor | 24V/270W |
| Controller | 24V/45ACurtis |
| N.W（W/battery） | 55kg |
| G.W（W/battery） | 68kg |
| Max Loading | 150kg |
| Speed（km/h） | 6-8km/h |
| Min.Turning Radius | 1.1m |
| Max Climbing Slope | 12° |
| Ground Clearance | 110mm |
| Max Range | ≥ 18km |
| Tire & Material | 9''/9'' Solid Tire |
| Wheelbase | 800mm |
| Suspension | Rear suspension *1 |
| Seat | 360° Leather seat |
| Child Seat | optional |
| Headlight | LED |
| Indicator | optional |
| Rear mirror | optional |
| Key | 2pcs |
| Basket | Removable |
| Charge time | 8-10h |
| Charger | 24V2A |
| USB | optional |
| Full Size（L×W×H） | 1100×510×900mm |
| Package Size | 1130×530×560mm |
| Main body | Intergrated |
| colour | red.blue.silver.black.white.grey |
| Folding | Folding |
Introducing our latest electric mobility scooter, designed to enhance your mobility and independence with unparalleled convenience and comfort.
Key Specifications:
Turning Radius: 115CM - Maneuver through tight spaces with ease, ensuring smooth navigation in various environments.
Battery: 12V12AH *2 - Equipped with powerful batteries, providing reliable and long-lasting performance for extended journeys.
Motor Power: 200W - Experience seamless acceleration and efficient operation, suitable for both indoor and outdoor use.
Controller: Curtis 24V45A - Incorporating advanced control technology for optimal responsiveness and safety.
Charger: 24V2A - Effortlessly recharge your scooter with the included charger, ensuring minimal downtime between rides.
Charge Time: 8-10 hours - Get back on the move quickly with a relatively short charging period, allowing for frequent use.
Max. Speed: 8km/h - Strike a balance between speed and safety, ideal for leisurely strolls and daily commuting.
Travel Range: 15-18km - Enjoy extended travel distances on a single charge, providing the freedom to explore your surroundings.
Max. Load: 120kg - Accommodating a wide range of users, ensuring stability and reliability for all individuals.
Ground Clearance: 13CM - Navigate over obstacles effortlessly, ensuring a smooth and comfortable ride on varied terrain.
Climb Degree: 12° - Conquer inclines with confidence, enabling you to tackle slopes with ease.
Wheel: Front 7'' Rear 7'' - Designed for optimal traction and stability, providing a smooth and controlled ride.
Wheel Hub: NDWon Solid Tire - Offering durability and reliability, ensuring minimal maintenance and maximum performance.
Rear Shock: 125x4.5 *2 - Absorb bumps and vibrations for a comfortable and stable ride, enhancing overall comfort and safety.
Drive System: 24V Sealed Mini Transaxle 24v - Engineered for efficiency and reliability, delivering smooth and consistent power delivery.
Our electric mobility scooter is crafted with precision engineering and premium components to offer you the ultimate mobility solution. Whether you're running errands, exploring the outdoors, or simply enjoying a leisurely ride, our scooter provides unmatched performance, comfort, and reliability to suit your lifestyle needs. Experience the freedom of mobility like never before with our electric scooter.
